Wire Balustrades Rig Fork System with Saddles



Wire Balustrade - Rig Fork System with Saddles

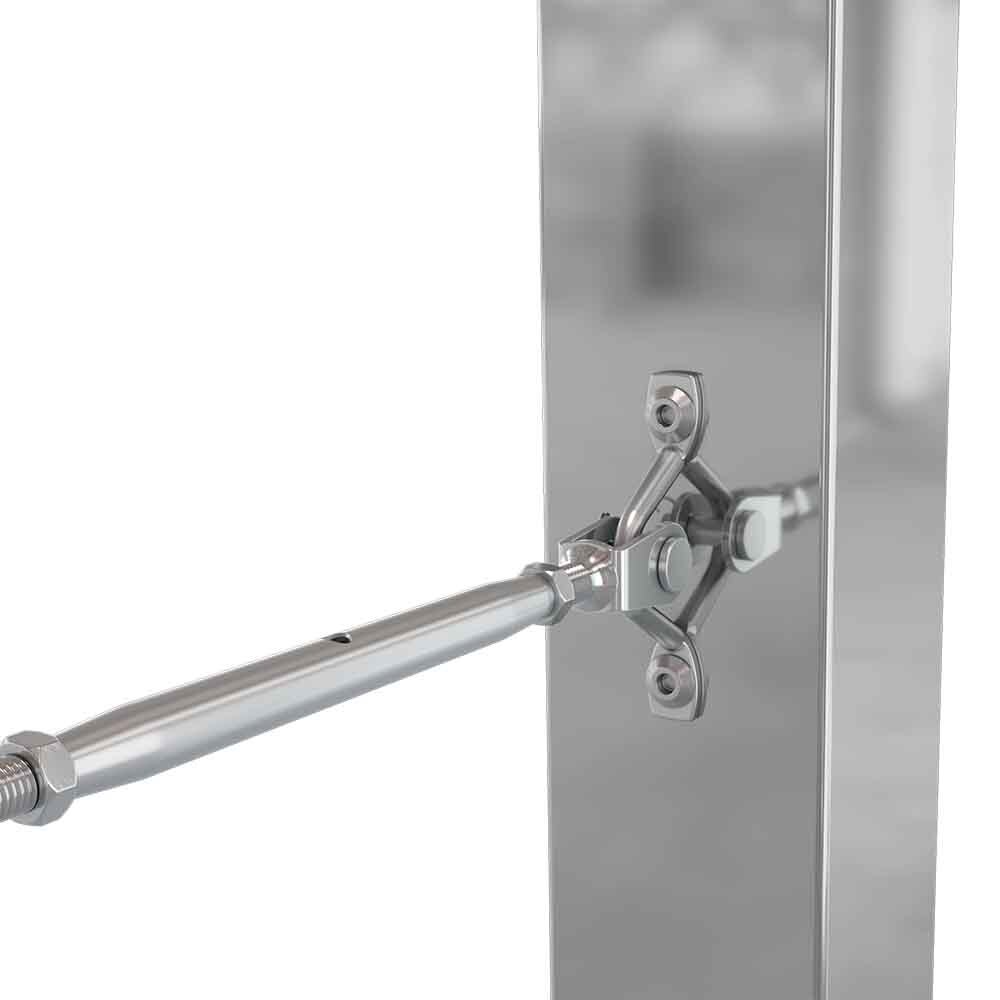

Is another of our most versatile systems. It is suitable for use with timber posts or metal posts and is great for both straight sections and stair sections. Tension is created on the wire by rotation of the rigging screw body. Tightening the nuts against the body of the rigging screw locks the system in place.


Our Bright Finish range offers a stylish and extremely durable finish to your wire balustrade system. Made from high quality 316 Grade stainless steel and processed to perfection this bright stianless steel finish offers long term corrosion resistance with a smooth and shiny lustre. To see this high quality finish for yourself we recommend ordering a FREE SAMPLE HERE.

THIS SYSTEM:
• is suitable for use with metal posts

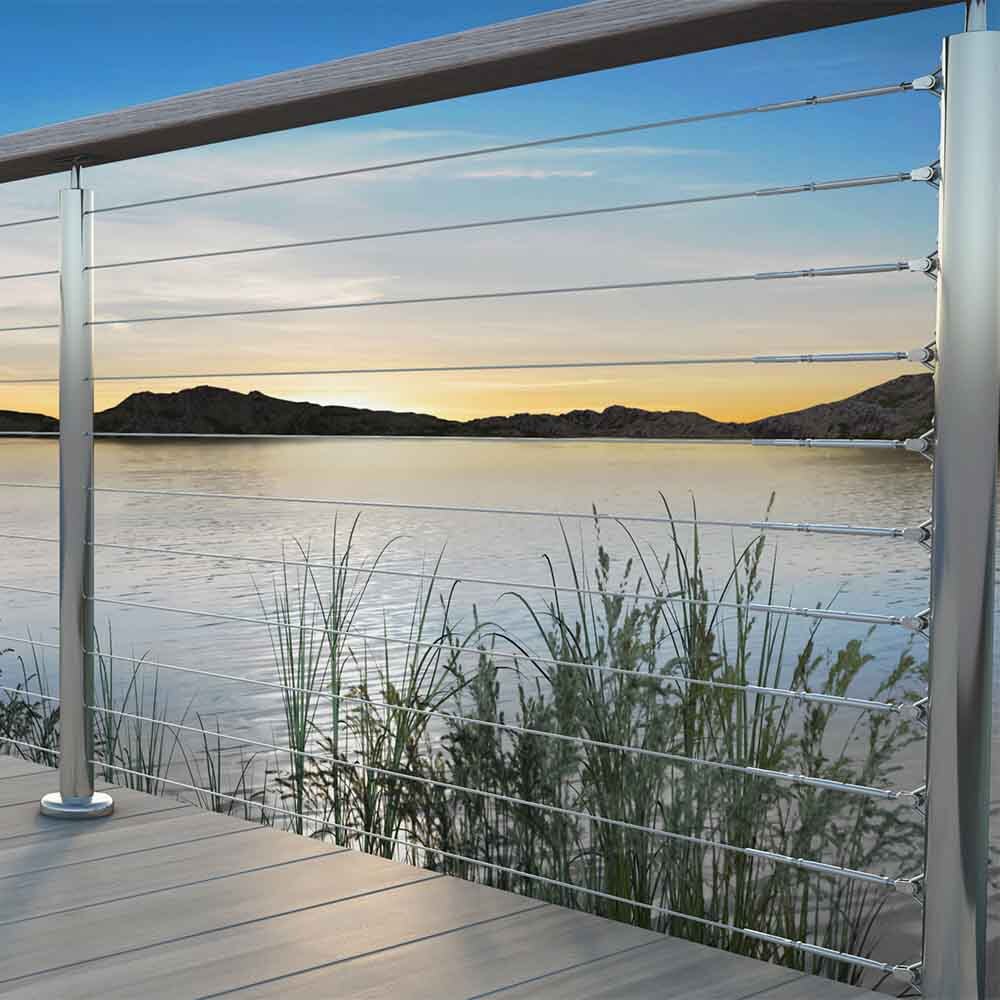

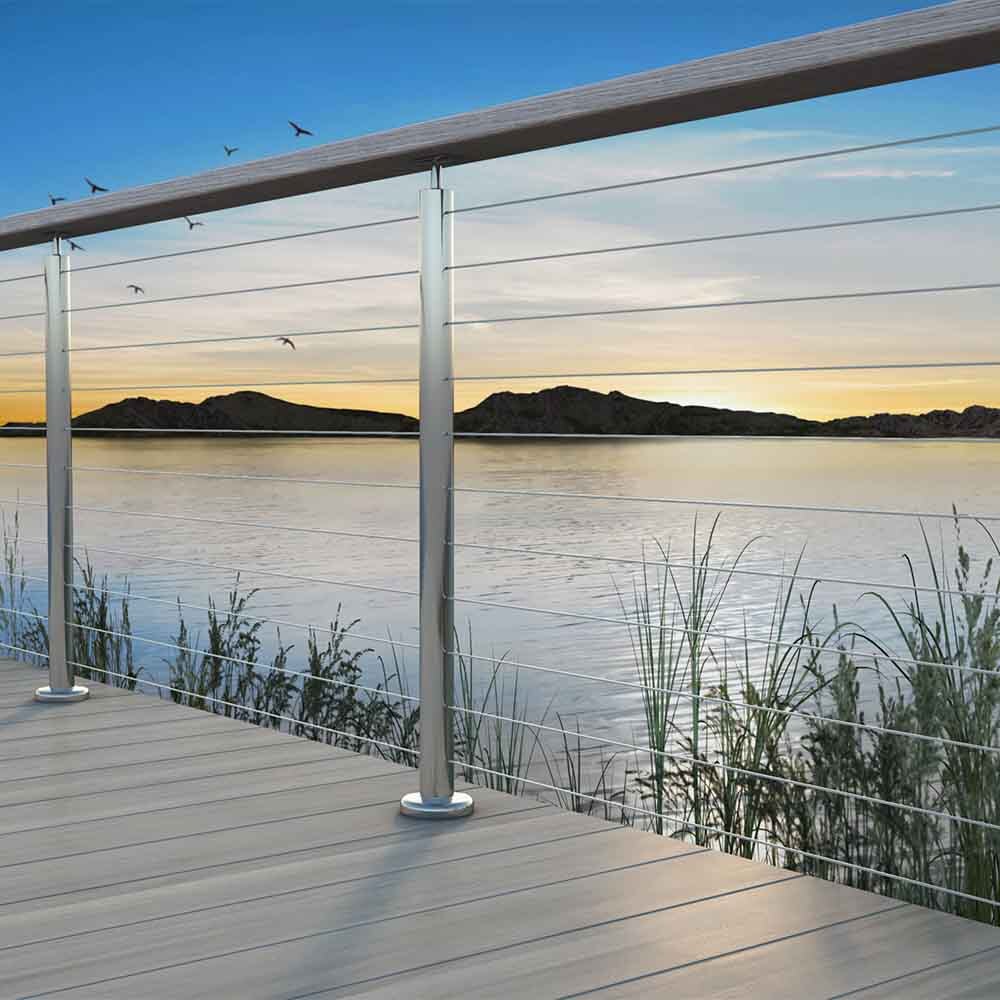

• is great for both flat and stair sections
• Requires factory hydraulic swaging
• AWR can factory swage balustrade wires to your exact lengths. Order before 2pm for next business day pick up or dispatch.

KEY BENEFITS OF THIS SYSTEM:
• Wires are pre-manufactured to your exact lengths
• Extremely quick and simple installation
• Uses ultra-bright and sleek 1 x 19 wire rope
• All fittings made from high quality 316 grade stainless steel
• This system is suitable for both flat and stair sections

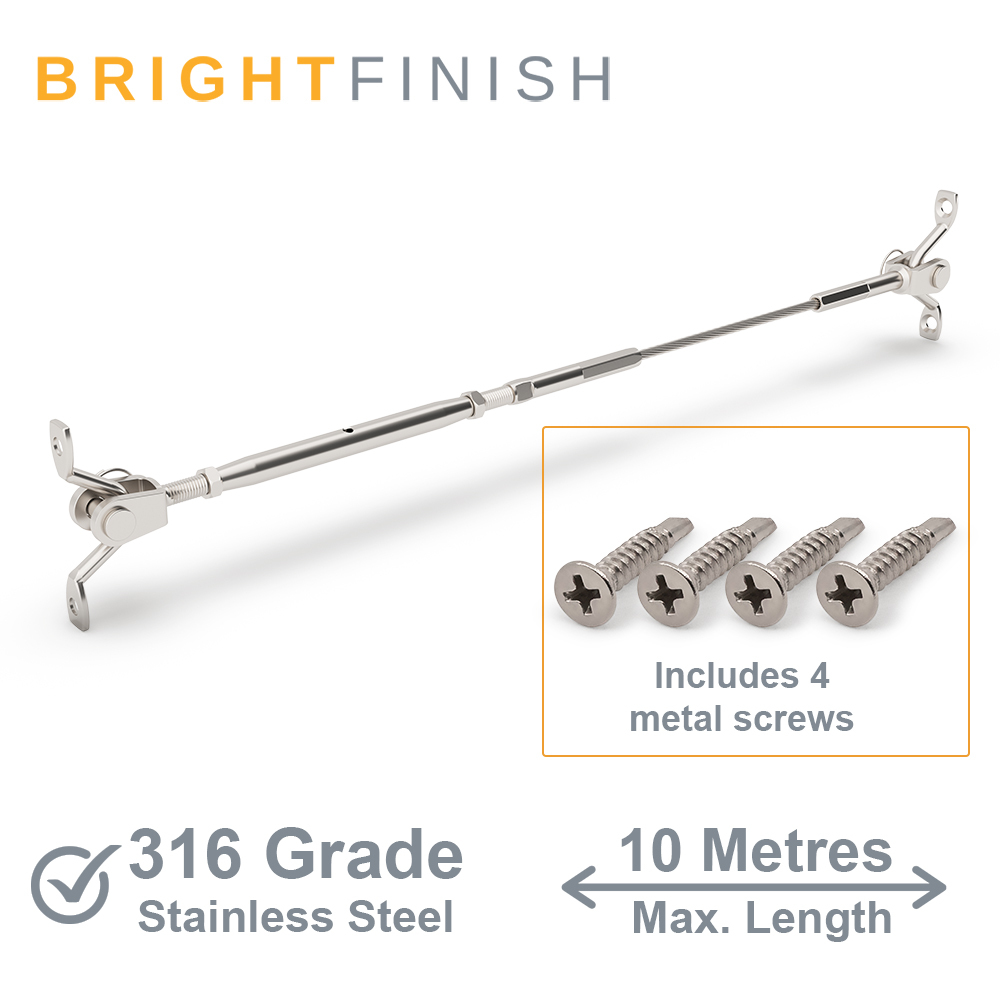

COMPONENTS REQUIRED PER WIRE:

1 x SS-312T-532 - Rigging Screw Jaw - Swage 316 grade M5 3.2m Wire

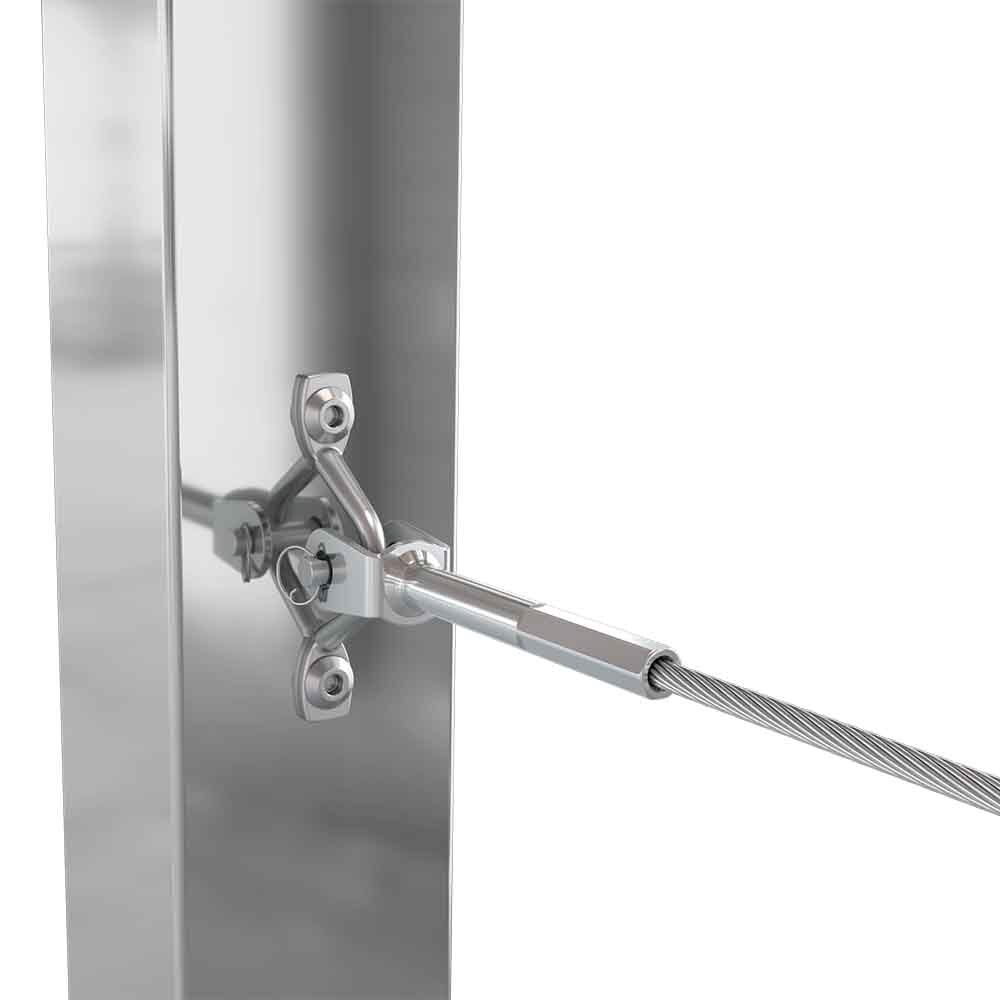

1 x SS-7803-03 - Fork Terminal - Swage 316grade 3.2mm Wire
2 x SS-322-05 - 5mm Saddle (Eye Strap) - 316 Grade
4 x STPP81148 x 1 1/4" Pan Head Self Tapper - 304 Grade (Timber posts only)
4 x PRSTST5-44 x 6.4mm Pop Rivets - 304 Grade (Metal Posts Only)
2 x S03
- Cut and Factory Swage (Additional Cost)
WRS119316-032-MTR - 3.2mm 1 x 19 Wire Rope 316 Grade (Additonal cost Charged per Metre)









Wire Balustrade - FAQ’s



Q: What are the best Wire Balustrade posts for the Wire Balustrade - Rig Fork System with Saddles?



A: Wire Balustrade - Rig Fork System with Saddles is suitable for use with metal posts



Q: Is this product suitable for Flat Wire Balustrade or Stair Wire Balustrade?



A: Wire Balustrade - Rig Fork System with Saddles is suited to both straight sections and stair sections



Q: How long does it take for my wires to be manufactured?



A: If your order is confirmed by 2pm we will have your wires manufactured and ready for dispatch or pick-up the following business day.



Q: What hole size do I need in my posts for the Rig Fork System with Saddles?



A: Saddles are attached to your connection posts using pop-rivets and will require 2 x 4mm holes. For your intermediate posts, an 8mm hole will be required to pass the threaded terminal through.



Note: if you are using split grommets (106874FB or 106874FS) you will require an 11/32” hole (8.73mm ) in your intermediate posts.





Q: Can I use this system for Stairs?



A: Yes, the Fork ends will naturally pivot to the angle of your stairs on the saddles.



Q: What measurements are required for the Rig Fork System with Saddles?



A: Please give us your inside post to inside post measurements between your connection posts and we will take care of the rest.



Q: What is the maximum length I can use with the Wire Balustrade Rig Fork System with Saddles?



A: The maximum recommended span between connection posts for this system is 10 metres.



Q: What size and type of wire should I use for this Wire Balustrade System?



A: As with all factory made systems we recommend using 3.2mm 1x19 wire. The fittings are hydraulically pressed onto the wire for a super streamline system.



Q: Do I need any special tools to install this system?



A: You will need a power drill, drill bits, drive bits and an adjustable spanner. We also recommend purchasing a C spanner for tensioning the rigging Screws for easier installation.



Q: How do my wires arrive to me?



A: All wires are bundled per section and labelled with your measurements for quick installation on site.



Q: Can I run my wire balustrade around corners?



A: We strongly advise against bending your wire around corners and angled sections. This can fatigue the wire over time as well as damage to your posts (especially timber). Wires should be terminated at each corner and end post.



Q: How many runs of wire do I need for my balustrade?



A: To comply with Australian NCC regulations most wire balustrades will require 80mm spacing between your wires when your intermediate posts are no more than 1500mm apart. We highly recommend reading the Wire Balustrade Regulations Help section of our website prior to ordering.


More Questions? No problem, just send us an email at sales@awrsolutions.com.au or give us a call on 1300 781 266 and we would be happy to help.









(WBS-RFSAD-M)
